DisclosureGroup¶

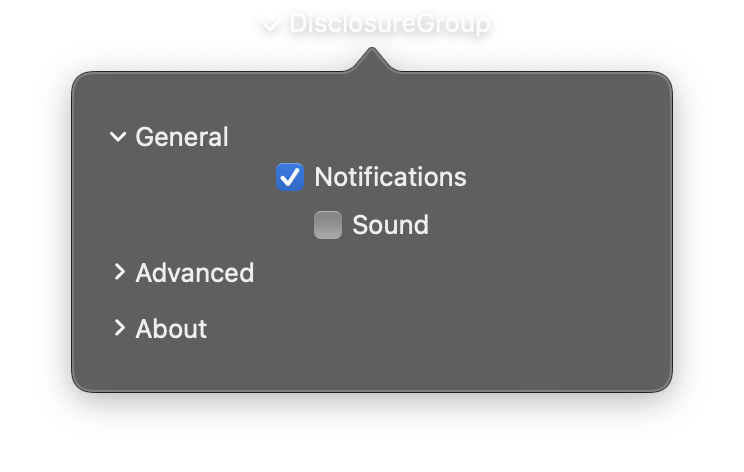

DisclosureGroup

A collapsible container that shows or hides content on demand. DisclosureGroup displays a label with a disclosure indicator (chevron) that users can tap to reveal or hide the contained content.

This is useful for organizing optional or advanced settings, creating accordion-style interfaces, or reducing visual clutter by hiding less frequently used options.

Constructor¶

nib.DisclosureGroup(
    label=None,
    controls=None,
    is_expanded=False,
    on_expand=None,
    **modifiers,
)

Parameters¶

Parameter	Type	Default	Description
`label`	`str`	required	The text label displayed in the header. This text is always visible regardless of the expansion state.
`controls`	`list[View]`	`None`	Child views shown when the group is expanded and hidden when collapsed.
`is_expanded`	`bool`	`False`	Initial expansion state. `True` starts expanded with content visible; `False` starts collapsed.
`on_expand`	`Callable[[bool], None]`	`None`	Callback invoked when the expansion state changes. Receives `True` when expanded, `False` when collapsed.
`**modifiers`			Common view modifiers: `padding`, `background`, `foreground_color`, `opacity`, `width`, `height`, etc.

Examples¶

Advanced options¶

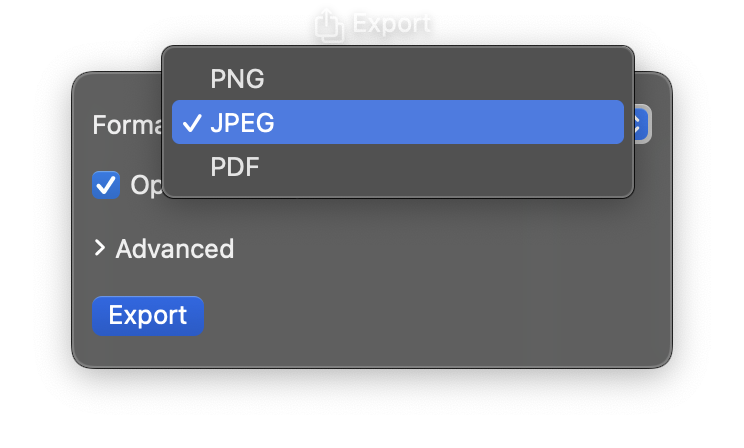

disclosure_group_advanced_options

import nib


def main(app: nib.App):
    app.title = "Export"
    app.icon = nib.SFSymbol("square.and.arrow.up.on.square")
    app.height = 260

    app.build(
        nib.VStack(
            controls=[
                nib.Picker("Format", selection="PNG", options=["PNG", "JPEG", "PDF"]),
                nib.Toggle("Open after export", is_on=True),
                nib.DisclosureGroup(
                    "Advanced",
                    controls=[
                        nib.Toggle("Include metadata", is_on=False),
                        nib.Toggle("Embed colour profile", is_on=True),
                        nib.Slider(
                            label="Quality", value=80, min_value=0, max_value=100
                        ),
                    ],
                ),
                nib.Button(
                    "Export",
                    action=lambda: None,
                    style=nib.ButtonStyle.BORDERED_PROMINENT,
                ),
            ],
            spacing=12,
            padding=16,
            width=280,
            alignment=nib.Alignment.LEADING,
        )
    )


nib.run(main)

Initially expanded group¶

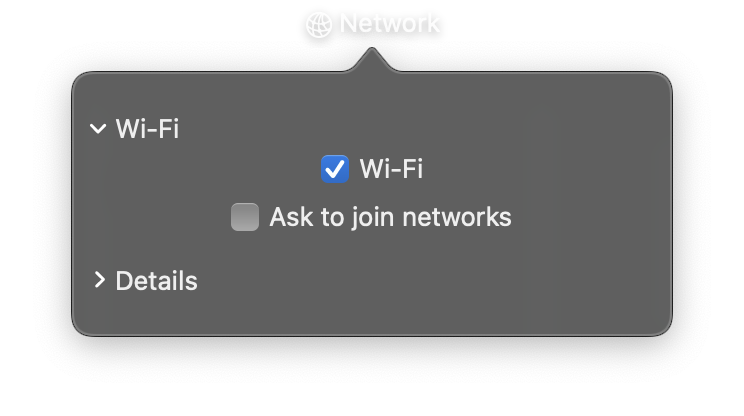

disclosure_group_initially_expanded_group

import nib


def main(app: nib.App):
    app.title = "Network"
    app.icon = nib.SFSymbol("network")
    app.height = 200

    def row(label, value):
        return nib.HStack(
            controls=[
                nib.Text(label, foreground_color=nib.Color.SECONDARY),
                nib.Spacer(),
                nib.Text(value, style=nib.TextStyle(monospaced=True)),
            ]
        )

    app.build(
        nib.VStack(
            controls=[
                nib.DisclosureGroup(
                    "Wi-Fi",
                    controls=[
                        nib.Toggle("Wi-Fi", is_on=True),
                        nib.Toggle("Ask to join networks", is_on=False),
                    ],
                    is_expanded=True,
                ),
                nib.DisclosureGroup(
                    "Details",
                    controls=[
                        row("IP address", "192.168.1.24"),
                        row("Router", "192.168.1.1"),
                        row("DNS", "1.1.1.1"),
                    ],
                    is_expanded=False,
                ),
            ],
            spacing=12,
            padding=16,
            width=280,
            alignment=nib.Alignment.LEADING,
        )
    )


nib.run(main)
