Slider¶

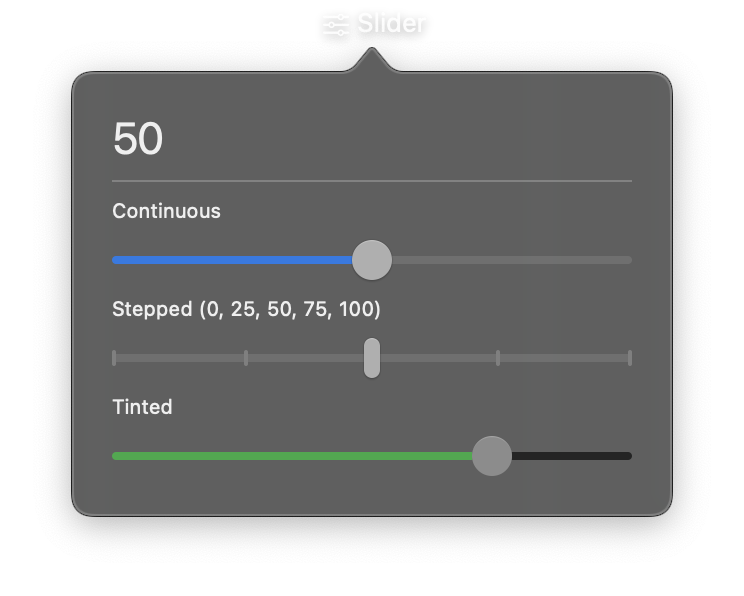

Slider control

A horizontal track with a draggable thumb for selecting a numeric value within a range. The slider supports continuous values or discrete steps when a step increment is specified.

Constructor¶

nib.Slider(
    value=0,
    min_value=0,
    max_value=1,
    step=None,
    label="",
    on_change=None,
    tint=None,
    disabled=False,
    **modifiers,
)

Parameters¶

Parameter	Type	Default	Description
`value`	`float`	`0`	Initial value of the slider. Must be between `min_value` and `max_value`.
`min_value`	`float`	`0`	Minimum value of the range.
`max_value`	`float`	`1`	Maximum value of the range.
`step`	`float`	`None`	Step increment for discrete values. When set, the slider snaps to multiples of this value. When `None`, values are continuous.
`label`	`str`	`""`	Optional text label displayed with the slider.
`on_change`	`Callable[[float], None]`	`None`	Callback called continuously as the slider value changes. Receives the new float value.
`tint`	`Color \| str`	`None`	Tint color for the filled portion of the slider track. Accepts a `Color` enum, hex string, or RGB tuple.
`disabled`	`bool`	`False`	Whether the slider is disabled and non-interactive.
`**modifiers`			Common view modifiers: `padding`, `background`, `opacity`, `width`, etc.

Examples¶

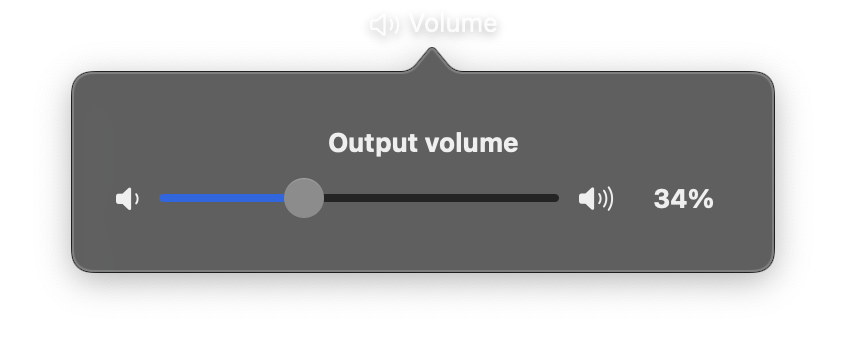

Volume control¶

slider_volume_control

import nib


def main(app: nib.App):
    app.title = "Volume"
    app.icon = nib.SFSymbol("speaker.wave.2")
    app.width = 360

    level = nib.Text("50%", font=nib.Font.HEADLINE, width=50)

    def on_volume(value):
        level.content = f"{int(value)}%"

    app.build(
        nib.VStack(
            controls=[
                nib.Text("Output volume", font=nib.Font.HEADLINE),
                nib.HStack(
                    controls=[
                        nib.SFSymbol("speaker.wave.1.fill"),
                        nib.Slider(
                            value=50,
                            min_value=0,
                            max_value=100,
                            on_change=on_volume,
                            tint=nib.Color.BLUE,
                            width=200,
                        ),
                        nib.SFSymbol("speaker.wave.3.fill"),
                        level,
                    ],
                    spacing=8,
                ),
            ],
            spacing=10,
            padding=20,
        )
    )


nib.run(main)

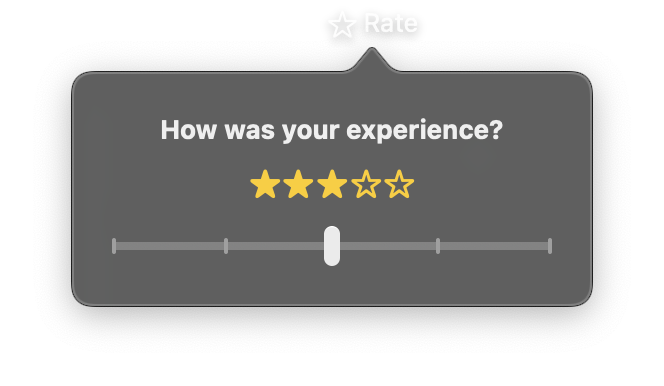

Rating slider with discrete steps¶

slider_rating_slider_discrete

import nib


def main(app: nib.App):
    app.title = "Rate"
    app.icon = nib.SFSymbol("star")

    stars = nib.Text("★★★☆☆", font=nib.Font.TITLE2, foreground_color=nib.Color.YELLOW)

    def on_rating(value):
        stars.content = "★" * int(value) + "☆" * (5 - int(value))

    app.build(
        nib.VStack(
            controls=[
                nib.Text("How was your experience?", font=nib.Font.HEADLINE),
                stars,
                nib.Slider(
                    value=3,
                    min_value=1,
                    max_value=5,
                    step=1,
                    on_change=on_rating,
                    tint=nib.Color.YELLOW,
                    width=220,
                ),
            ],
            spacing=10,
            padding=20,
        )
    )


nib.run(main)
